MECHETEC PC
MECHETEC® PC (Polycarbonate) is a transparent thermoplastic that exhibits extraordinary impact resistance and excellent electrical properties. In addition, its low moisture absorption rate and good chemical resistance make it an extremely versatile engineering material and allows for its use in a multitude of industrial applications. Unfilled MECHETEC® PC is a mechanical grade material with light transmittance of approximately 88%. For applications requiring additional stiffness, a 20% glass fiber filled option is available.
Formally known as Unicar PC. For more Info :
Have questions or need samples?
Features
- 265 ° F Continuous Use Temperature
- Superior Electrical Properties
- Excellent UV Resistance
- Transparent
Colors
Natural
Black
Applications
- Manifolds
- Sight Glasses

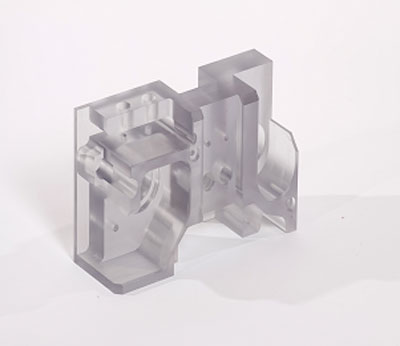

- Electrical Insulators
- Aircraft Instrumentation
- Electrical Component Housings
Formulations
- 20% Glass-Filled
Sizes
Unfilled
Extruded Sheet
Thickness
0.25 – 4.00 inch / 6 – 102 mm
Sheet Size
24 x 48 inch / 610 x 1220 mm
Extruded Rod
Diameter
0.375 – 8.00 inch / 10 – 203 mm
Length
96 inch / 2438 mm
Glass-Filled
Extruded Sheet
Thickness
0.25 – 4.00 inch / 6 – 102 mm
Sheet Size
24 x 48 inch / 610 x 1220 mm
Extruded Rod
Diameter
0.5 – 8.00 inch / 13 – 203 mm
Length
96 inch / 2438 mm
